Schmidt and Bender 5-25x56 PM11 with illuminated P4L fine reticule double
turn turrets parallax adjustment
£1855 including FREE Butler Creek flip up covers and

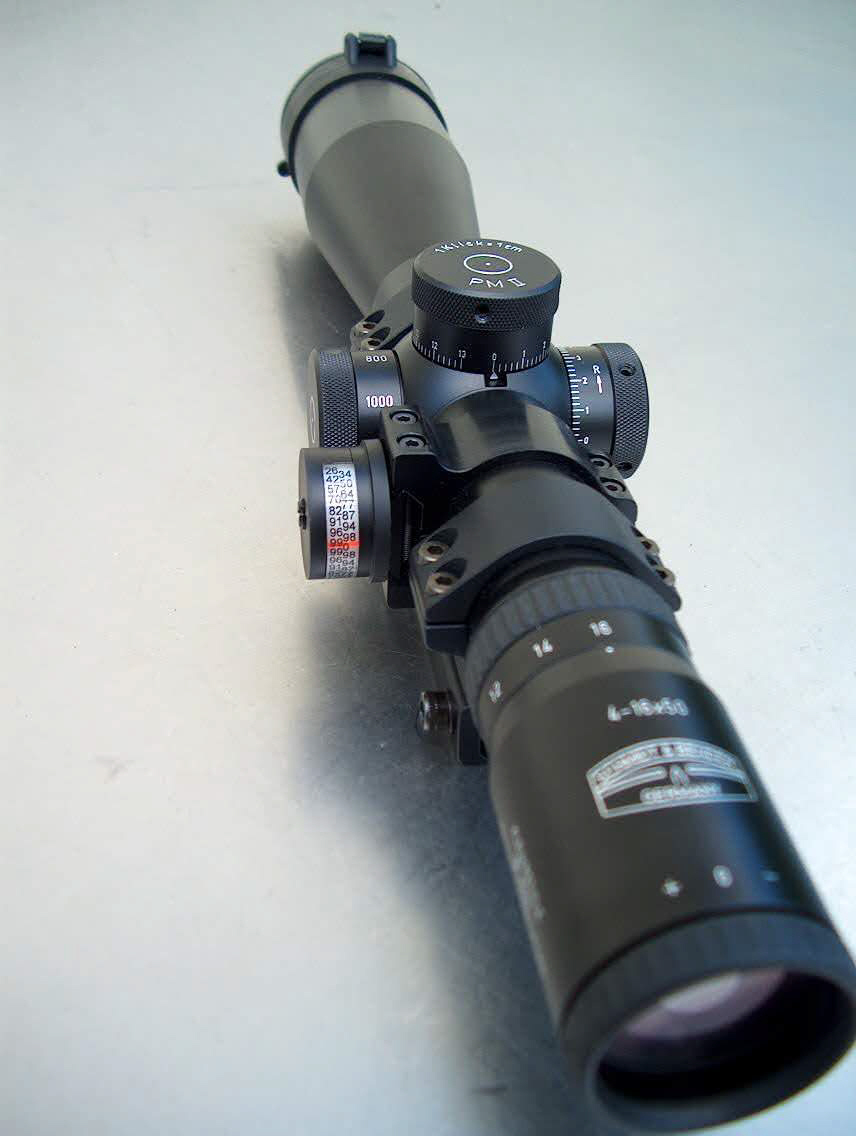

optics cleaning kit OPTIONAL ACCESSORY PM11 in picture above is fitted with Angle Cosine Indicator with special 34mm fixing ring for accurate up and downhill shooting ACI
£87 34mm ring £43.50 Badger rail mount £45 Schmidt and Bender 5-25x56 PM11/LP P4LF DT
Schmidt and Bender's double turn elevation turret with 0.1MRAD
clicks covers all 27milrad of elevation within two turns of the elevation turret. This equates to 27 metres of elevation
at 1000 metres. With the P4 fine reticule you also have a built in rangefinder in case you need it. It is visible on
15 times magnification. Also, the vertical line of the cross hair on the P4 fine is marked out with milradian and 1/2 milradian
hack marks. This can be used to give an additional 25 milradian of elevation, giving a total of 52
useable milradian of elevation. (However, if you wish to use the optic on full power, this extra elevation
is reduced to 10 milrad, giving a total of 37.)
This optic/reticule combination will enable the full ballistic capability of a good quality rifle to be utilized,
e.g. with the .338 LM, accurate shooting out to 2.5 kilometres is easily achievable. Weight 32 oz
Eye Relief
(in): 3.7
Field of View @ 100 yards (ft): 22.5 - 7.5
Exit Pupil (mm):
11.2 - 2.24
P4L fine reticule Dimensions of the PM115-25x56 | Dimensions | A | B | C | D | E | F | G | H | mm
inch | 416,50
16,38 | 123,50
4,85 | 44,50
1,74 | 45,50
1,78 | 38,00
1,50 | 92,50
3,63 | 72,50
2,84 | 62,00
2,44 | | Dimensions | J | K | L | M | N | P | R | S | mm
inch | 34,00
1,34 | -
- | 43,00
1,69 | -
- | 55,50
2,17 | 41,00
1,61 | 41,00
1,61 | 40,00
1,57 |
|
 |
|
|
|
|
|
|
|
|
|
